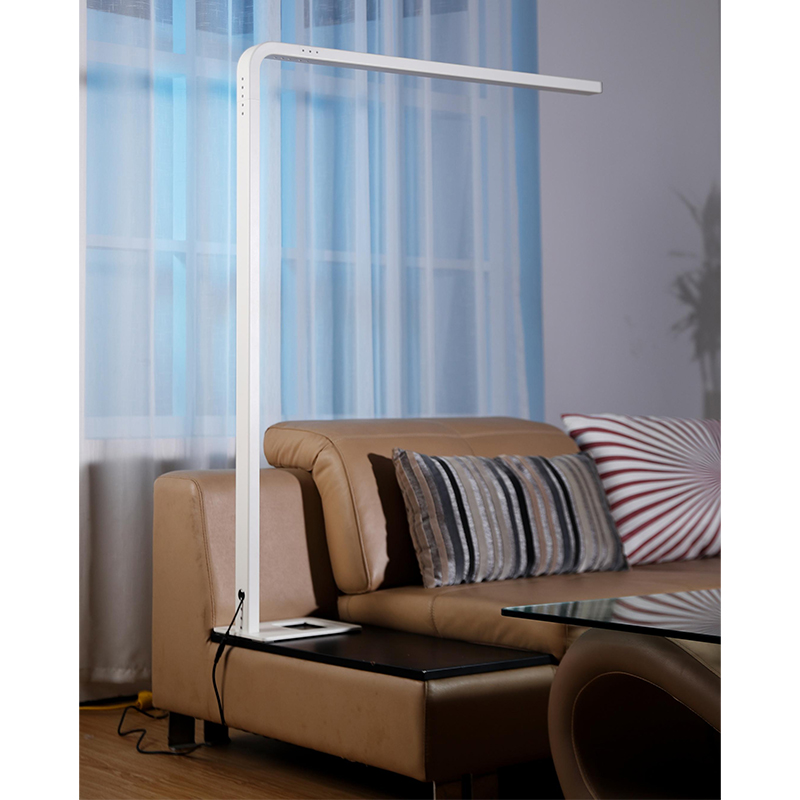

Frost Jingyuan 100 Table Lamp

GJT-JY100

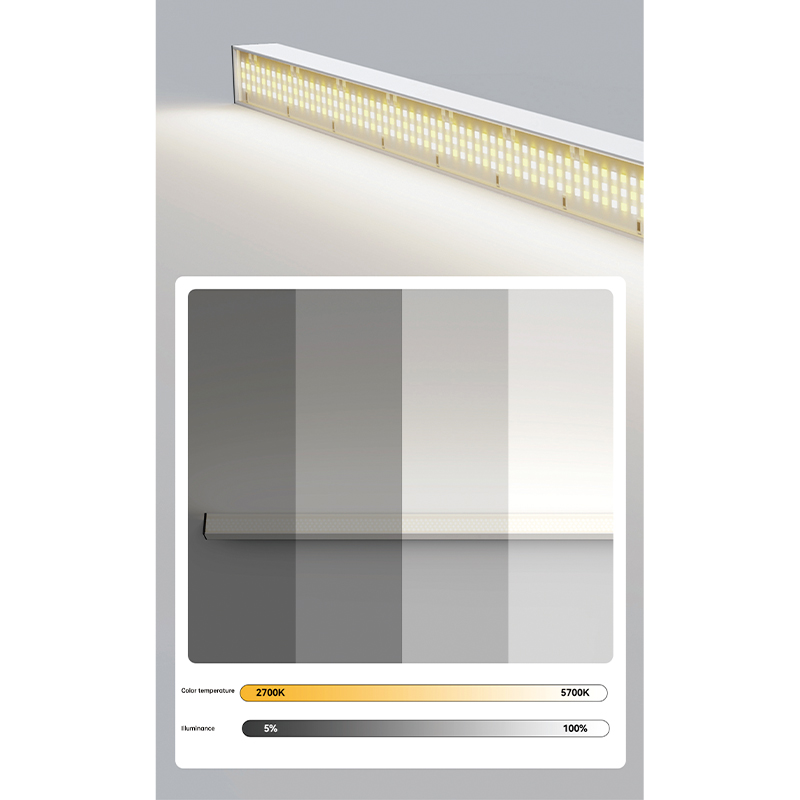

1. Intelligent dimming and color adjustment, voice control + Tuya APP control + touch multi-level control, achieving: illumination 10~900lx, color temperature 2700~5700K can be adjusted at will.
2. Shading: 100% shading, achieve the tree shadow lighting effect of "seeing light but not lamp, seeing light but not shadow".
3. Anti-glare: UGR<10, measured UGR: 5.7, eliminate glare hazards
4. Blue light hazards: The measured desktop retina blue light hazard radiation brightness value LB (W/㎡/sr) is 0.3491, and the national standard requires less than 100, eliminate blue light hazards.
5. Light source: military-grade Purui full-spectrum LED lamp beads, 2835, 3V, 0.2~0.5W, 9B12C*2*2, 432 pieces
6. Material: PC unbreakable light cover + ADC12 alloy aluminum lamp head + aviation aluminum lamp pole + steel plate base + 3M silicone anti-slip pad
7. Maximum luminous flux: 11399lm, luminous efficiency: 94lm/w, Ra: 98.4, maximum power: 128w, which can meet the lighting needs of 6-35㎡ study, bedroom, children's room, piano room, dressing room, dining room, living room, office, study room, reception room, etc..

Product functions and parameters

Model/Name

GJL-JY100/Kanghu floor lamp-Jingyuan 100

Power/Current

118.8W (432×0.5W/LED module)/3.3A

Input voltage/frequency

AC100-240V~50/60Hz

Output voltage

DC36V

Power Factor

0.90 (measured 0.95)

Color rendering index

Ra:98

Color temperature

2700K-4000K-5700K

Protection level

CLASS Ⅲ

Light source specifications and quantity

Military-grade full-spectrum LED lamp beads, 2835, 3V, 0.2~0.5W, 9B12C*2*2, 432 pcs

Lighting effect

The maximum luminous flux is 11591.861m in neutral light,
luminous efficiency is 92.531m/w, and power is 125.28w;
the maximum luminous flux is 6686.7Im in white light,
luminous efficiency is 96.17Im/w, and power is 69.53w;
the maximum luminous flux is 5833.381m in yellow light,
luminous efficiency is 84.361m/w, and power is 69.15w

Light level

AAAAAA

Light blocking

Shading degree: 100%

Anti-glare

UGR<10 (minimum 4.0, glare eliminated)

Control System

Dimming and color adjustment voice control + Tuya APP control +
touch multi-level dimming and color adjustment control

Technological advancement

Series of patents: invention patent + international PCT +
utility model patent + appearance patent

Certification



Implementation Standards

GB/T 7000.1-2023,GB/T 7000.201-2023,GB/Z 39942-2021,
GB17625.1-2022,GB/T17743-2021,GB/T9473-2022,Q/GJTL1913.8-2024

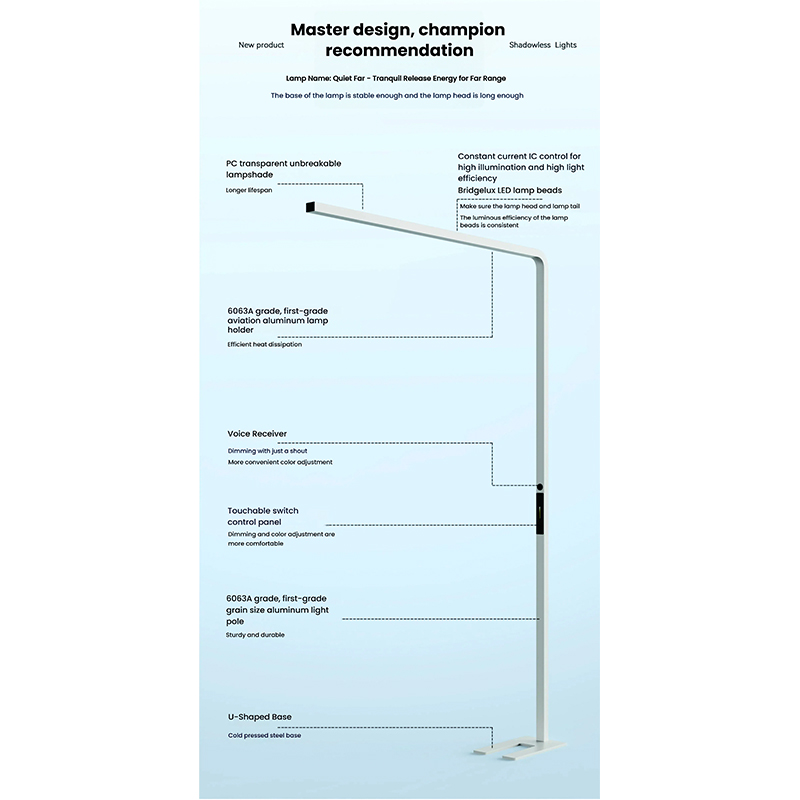

Material

PC unbreakable light cover + 6063A grade,
first-grade aluminum lamp holder and lamp pole +
steel plate base + 3M silicone anti-slip pad

Product Net Weight

8.23KG

Specifications and dimensions

L1160×W54×H2030mm

Application


Study, bedroom, children's room, piano room, dressing room,
dining room, living room, office, study room, reception room, etc.


Note: This parameter is for reference only. For functional parameters of other models,
please refer to the product nameplate on the lamp.

×
