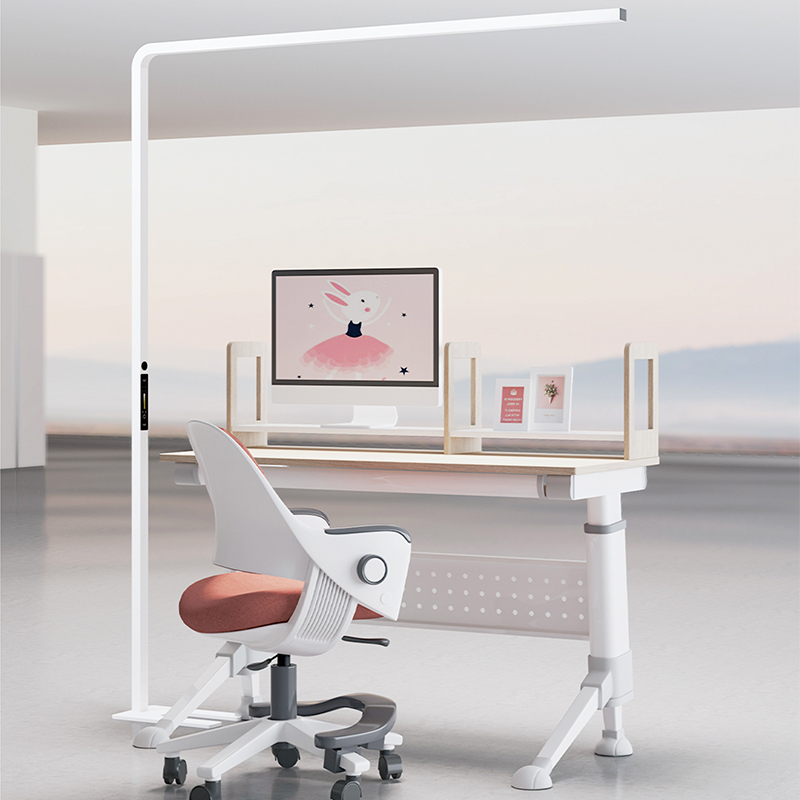

Frost Jingyuan 150 Floor Lamp

 GJL-JY150
1. Intelligent dimming and color adjustment, voice control + Tuya APP control + touch multi-level control, achieving: illumination 10~1000lx, color temperature 2700~5700K can be adjusted at will.
2. Shading: 100% shading, achieve the tree shadow lighting effect of "seeing light but not lamp, seeing light but not shadow".
3. Anti-glare: UGR<10, measured UGR: 5.7, eliminate glare hazards
4. Blue light hazards: The measured desktop retina blue light hazard radiation brightness value LB (W/㎡/sr) is 0.3491, and the national standard requires less than 100, eliminate blue light hazards.
5. Light source: military-grade Purui full-spectrum LED lamp beads, 2835, 3V, 0.2~0.5W, 12B12C*2*2, 576 pieces
6. Material: PC unbreakable light cover + ADC12 alloy aluminum lamp head + aviation aluminum lamp pole + steel plate base + 3M silicone anti-slip pad
7. Maximum luminous flux: 14506lm, luminous efficiency: 98lm/w, Ra: 98.4, maximum power: 157w, which can meet the lighting needs of 6-45㎡ study, bedroom, children's room, piano room, dressing room, dining room, living room, office, study room, reception room, etc..

Product functions and parameters

Model/Name

GJL-JY150 Kanghu Floor Lamp-Jingyuan 150

Power/Current

154.8W (576×0.5W/LED module)/4.3A

Input voltage/frequency

AC100-240V~ 50/60Hz

Output voltage

DC36V

Power Factor

0.90 (measured 0.95)

Color rendering index

Ra:98

Color temperature

2700K-4000K-5700K

Protection level

CLASS Ⅲ

Light source specifications and quantity

Military-grade full-spectrum LED lamp beads, 2835, 3V, 0.2~0.5W, 12B12C*2*2, 576 pcs

Lighting effect

The maximum luminous flux is 14506lm in neutral light, luminous efficiency is 92.22lm/w, and power is 157.3W; the maximum luminous flux is 86961m in white light, luminous efficiency is 97.941m/W, and power is 88.8W; the maximum luminous flux is 6954Im in yellow light, luminous efficiency is 86.36lm/W, and power is 80.52W

Light level

AAAAAA

Light blocking

Shading degree: 100%

Anti-glare

UGR<10 (minimum 4.0, glare eliminated)

Control System

Dimming and color adjustment voice control + Tuya APP control + touch multi-level dimming and color adjustment control

Technological advancement

Series of patents: invention patent + international PCT + utility model patent + appearance patent

Certification



Implementation Standards

GB/T 7000.1-2023,GB/T 7000.201-2023,GB/Z 39942-2021,
GB17625.1-2022,GB/T17743-2021,GB/T9473-2022,Q/GJTL1913.8-2024

Material

PC unbreakable light cover + 6063A grade, first-grade aluminum lamp holder and lamp pole + steel plate base + 3M silicone anti-slip pad

Product Net Weight

9.23KG

Specifications and dimensions

L1660×W54×H2030mm

Application

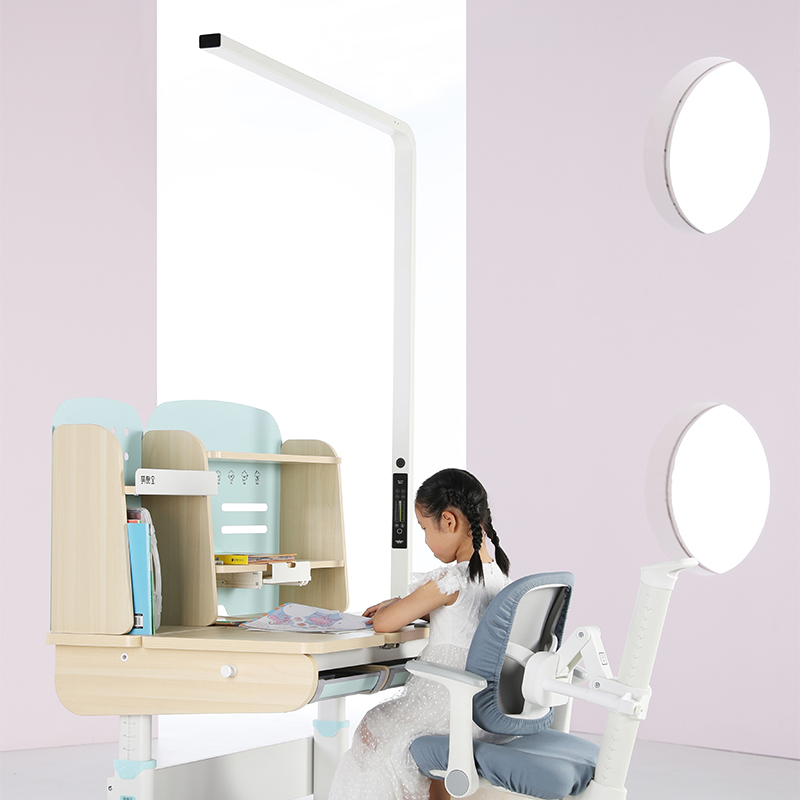

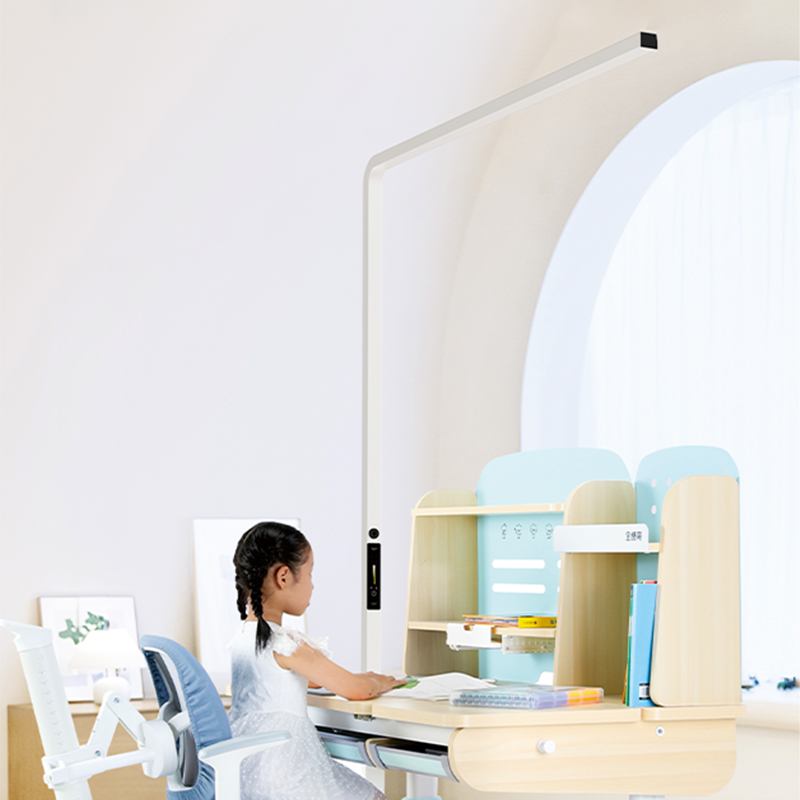

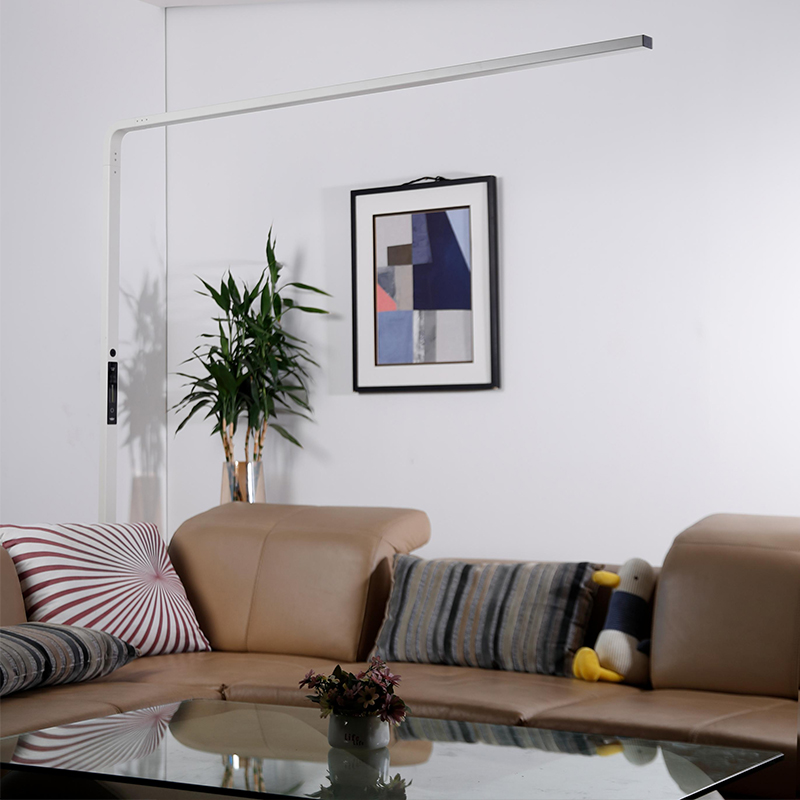

Study, bedroom, children's room, piano room, dressing room, dining room, living room, office, study room, reception room, etc.

Note: This parameter is for reference only. For functional parameters of other models, please refer to the product nameplate on the lamp.

×
